Orion Fans

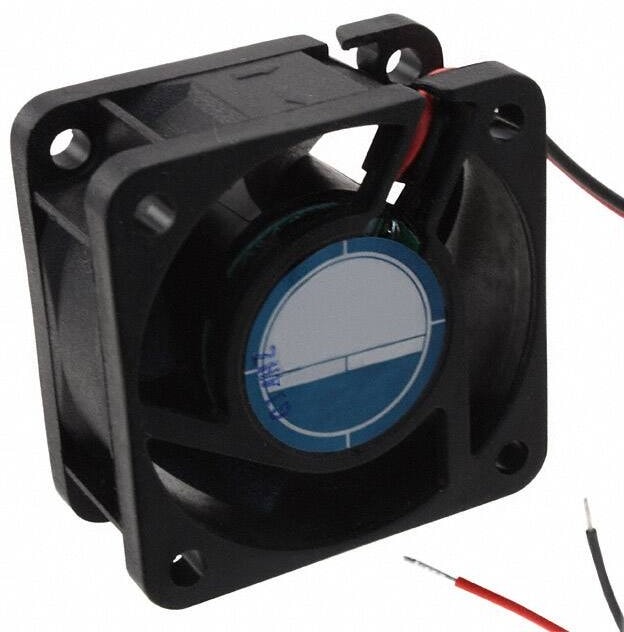

8005184047 OD4020-12HB, DC Fans DC Fan, 40x40x20mm, 12VDC, 9CFM, 0.1A, 36dBA, 7800RPM, Dual Ball, Lead Wires Hirschmann
2070,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 9.0 CFM (0.252mВі/min) 2 Wire Leads
| Вес, г | 30 |
| Fan Type | Tubeaxial |
| Noise Level | 32 dB |
| Series | OD4020-> |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 32.0dB |
| Power Rating | 1.2 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 2 Wire Leads |
| Width | 20.00mm |
| Category | DC Fan |
| COO | TW |
| Housing Material | Plastic |
| Maximum Airflow | 9 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.100A |
| Static Pressure | 0.3 in H2O(74.7 Pa) |
| Частота вращения,об./мин. | 7800 |
| Производительность,м.куб./мин. | 9 |
| Шум, дБA | 36 |
| Voltage Range | 7 ~ 14VDC |
Детали
| Бренд | Orion Fans |
|---|
