Orion Fans

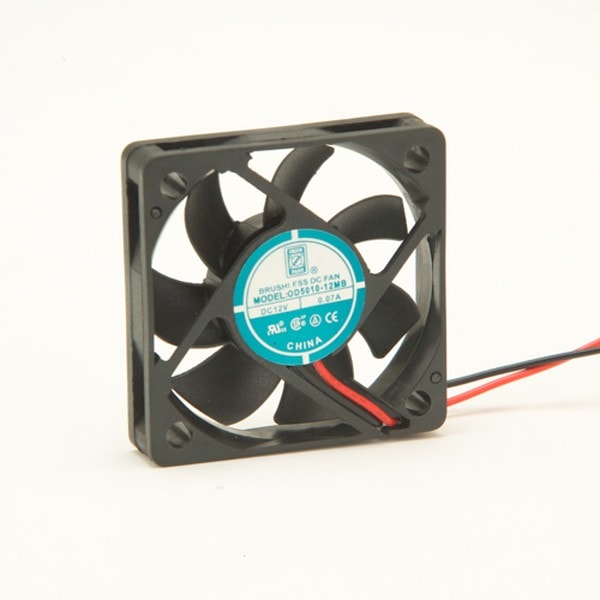

8005184060 OD5010-12HB, DC Fans DC Fan, 50x50x10mm, 12VDC, 11CFM, Ball Bearing, Lead Wires Hirschmann
2070,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 50mm L x 50mm H Ball 11.2 CFM (0.314mВі/min) 2 Wire Leads
| Вес, г | 18 |
| Потребляемая мощность, Вт | 1.1 |
| Fan Type | Tubeaxial |
| Noise Level | 28 dB |
| Series | OD5010-> |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 50×10 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 26.0dB |
| Power Rating | 1.44 W |
| Approval Agency | cURus |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-50mm L x 50mm H |
| Termination | 2 Wire Leads |
| Width | 10.50mm |
| Category | DC Fan |
| COO | TW |
| Housing Material | Plastic |
| Maximum Airflow | 11 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.120A |
| Static Pressure | 0.1 in H2O(24.9 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 11 |
Детали
| Бренд | Orion Fans |
|---|
