Sanyo Denki

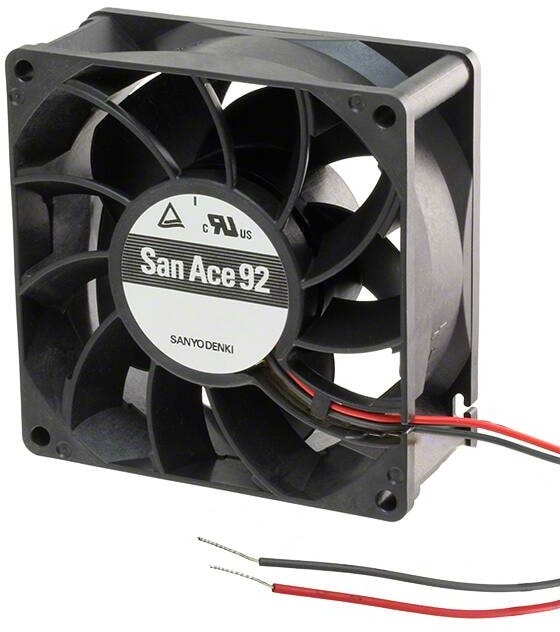

8005415362 9G0912G102, DC Fans DC Axial Fan, 92x92x38mm, 12VDC, High Performance Hirschmann
4030,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 110.0 CFM (3.08mВі/min) 2 Wire Leads
| Вес, г | 180 |
| Потребляемая мощность, Вт | 13.2 |
| Air Flow | 186.9m³/h |
| Fan Type | Tubeaxial |
| Series | San Ace 92-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection |
| Noise | 50.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 140В°F(-20 ~ 60В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 0.397 lb(180.08 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 1.10A |
| Static Pressure | 0.602 in H2O(149.9 Pa) |
| Ток,А | 1.1 |
| Частота вращения,об./мин. | 5000 |
| Шум, дБA | 50 |
| AC or DC Operation | DC |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| Voltage Range | 7 ~ 13.8VDC |
Детали
| Бренд | Sanyo Denki |
|---|
