EBM-PAPST

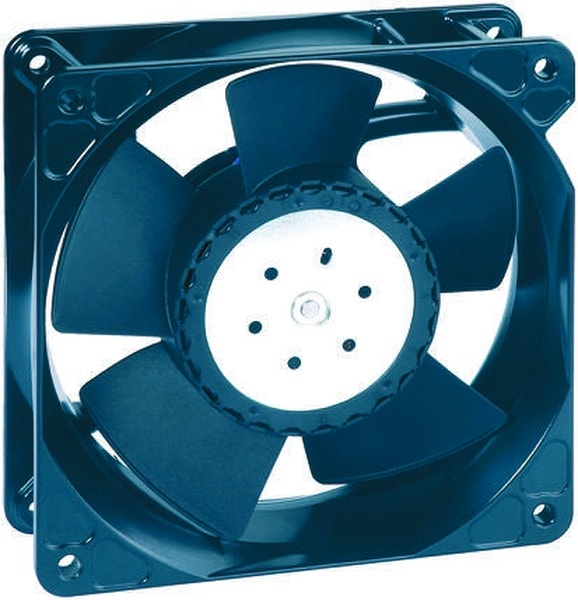

8005892924 4118N/2H7P, Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 294.0 CFM (8.23m³/min) 4 Wire Leads Hirschmann
28240,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 294.0 CFM (8.23mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 90 |
| Air Flow | 500m³/h |
| Fan Type | Tubeaxial |
| Noise Level | 76dB |
| Series | 4100N-> |
| Supply Voltage | 48 V dc |
| Тип подшипника | Ball |
| Размеры рамы,мм | 119×119 |
| Рабочее напряжение,В | 48 |
| Питание | 4pin |
| Manufacturer | EBM-PAPST |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 76.0dB(A) |
| Lifetime @ Temp. | 57500 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 167В°F(-20 ~ 75В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 4 Wire Leads |
| Weight | 0.937 lb(425.02 g) |
| Width | 38.00mm |
| Enclosure material | aluminium |
| Fan efficiency | 494m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x4 |
| Type of fan | DC |
| Power consumption | 90W |
| Bearing Type | Ball |
| Частота вращения,об./мин. | 9500 |
| Производительность,м.куб./мин. | 294 |
| AC or DC Operation | DC |
| Fan dimensions | 119x119x38mm |
| Fan Speed | 9500rpm |
| Sensor Type | Open Collector |
| Cable length | 0.31m |
| Video File | S Force Fans |
| Voltage Range | 36 ~ 60VDC |
| Rotational rate/speed | 9500rpm |
Детали
| Бренд | EBM-PAPST |
|---|
