Orion Fans

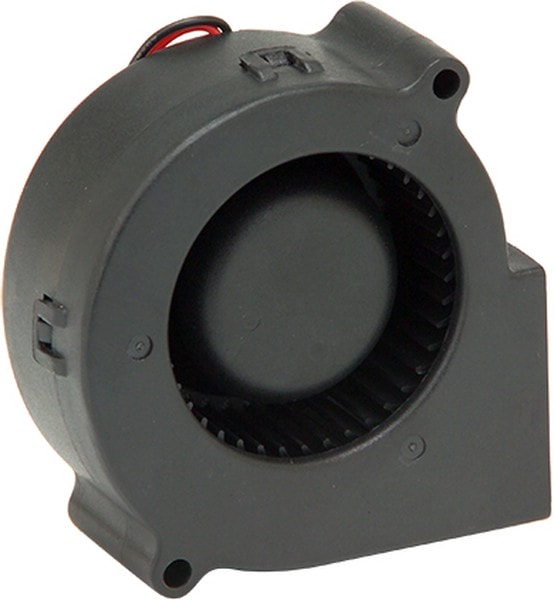

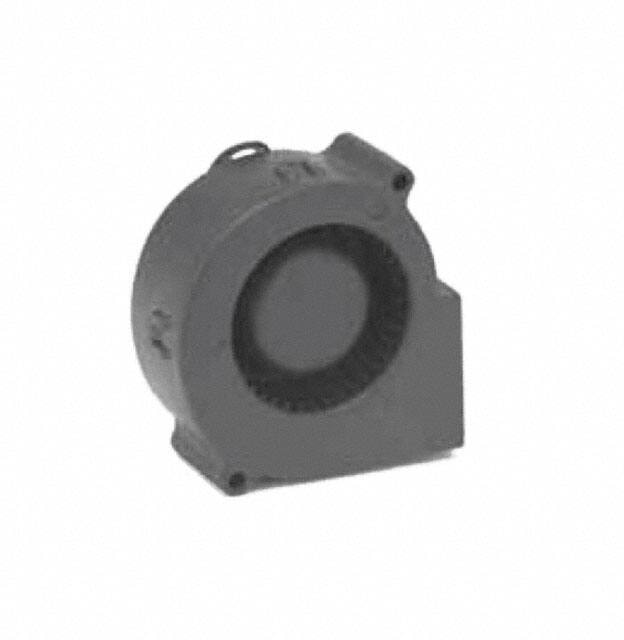

8006081137 ODB7530-24HB, Fan Blower 24VDC Square/Rounded — 75mm L x 75mm H Ball 13.8 CFM (0.386m³/min) 2 Wire Leads Hirschmann
4760,00 ₽
Описание
Fan Blower 24VDC Square/Rounded — 75mm L x 75mm H Ball 13.8 CFM (0.386mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 4.8 |
| Fan Type | Blower |
| Series | ODB7530-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 75×75 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 30 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 41.7dB(A) |
| Approval Agency | cURus |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square/Rounded-75mm L x 75mm H |
| Termination | 2 Wire Leads |
| Width | 30.00mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.200A |
| Static Pressure | 0.56 in H2O(139.5 Pa) |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 13.8 |
| Шум, дБA | 41.7 |
| Voltage Range | 17 ~ 26.4VDC |
Детали
| Бренд | Orion Fans |
|---|
