Orion Fans

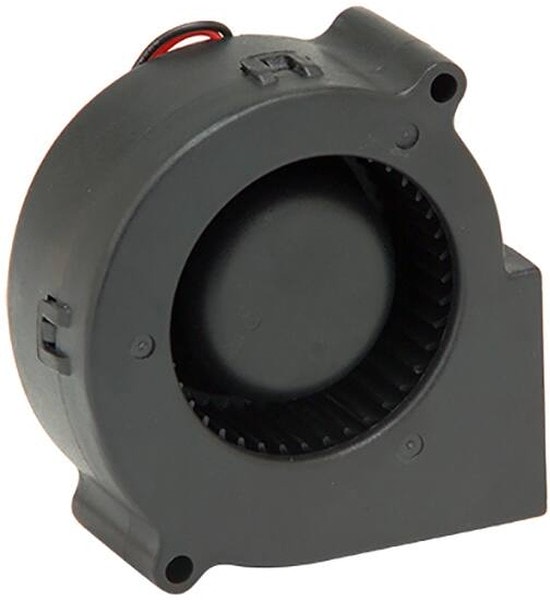

8006856438 ODB7530-12HB02A, Fan Blower 12VDC Square/Rounded — 75mm L x 75mm H Ball 13.8 CFM (0.386m³/min) 3 Wire Leads Hirschmann
4010,00 ₽
Описание
Fan Blower 12VDC Square/Rounded — 75mm L x 75mm H Ball 13.8 CFM (0.386mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 4.32 |
| Fan Type | Blower |
| Series | ODB7530-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 75×75 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Sensor |
| Noise | 41.7dB |
| Approval Agency | cURus |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square/Rounded-75mm L x 75mm H |
| Termination | 3 Wire Leads |
| Width | 30.00mm |
| Current Rating (Amps) | 0.360A |
| Static Pressure | 0.56 in H2O(139.5 Pa) |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 13.8 |
| Voltage Range | 7 ~ 13.2VDC |
Детали
| Бренд | Orion Fans |
|---|
