Delta Electonics

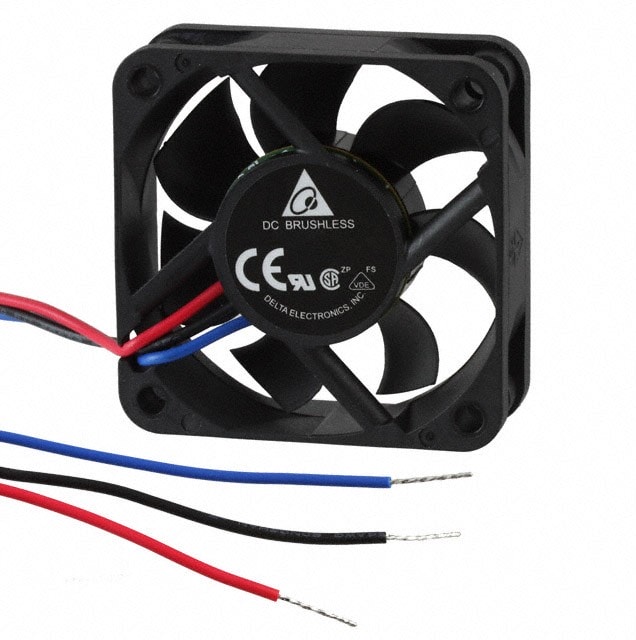

8006115972 AFB04512HB-F00, Fan Tubeaxial 12VDC Square — 45mm L x 45mm H Ball 14.0 CFM (0.392m³/min) 3 Wire Leads Hirschmann
2410,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 45mm L x 45mm H Ball 14.0 CFM (0.392m³/min) 3 Wire Leads
| Вес, г | 17 |
| Air Flow | 14 CFM(0.392m³/min) |
| Fan Type | Tubeaxial |
| Noise Level | 33.5(dB) |
| Размеры рамы,мм | 45×45 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| Features | Locked Rotor Protection, Speed Sensor(Tach) |
| Noise | 33.5dB(A) |
| Power Rating | 1.68(W) |
| Type | DC Fan |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F(-10 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 15.00mm |
| Housing Material | Plastic |
| Maximum Airflow | 14(cfm) |
| Voltage Rating | 12 |
| Static Pressure | 0.223 in H2O(55.5 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 1.68 W |
| RPM | 6300 RPM |
| Voltage — Rated | 12VDC |
| Maximum Pressure | 0.223 |
| Product Height (mm) | 15(mm) |
| Product Length (mm) | 45(mm) |
| Product Diameter (mm) | Not Required(mm) |
| Bearings | Ball |
| Product Depth (mm) | 45(mm) |
| Operating Frequency | Not Required(Hz) |
| Operating Input Voltage Range | 5 TO 13.8 |
| Mounting Style | Flange |
| Fan Rotation | Clockwise |
| Line Current | 0.14(A) |
| Rad Hardened | No |
| Speed (Nominal) | 6300(rpm) |
Детали
| Бренд | Delta Electonics |
|---|
