8006122697 G8015X12B-AGR-EM, Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 43.0 CFM (1.20m³/min) 2 Wire Leads Hirschmann
3850,00 ₽
Описание

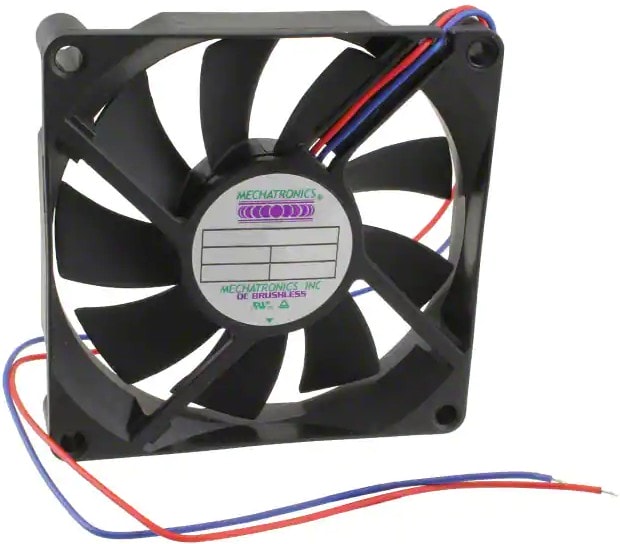

Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 43.0 CFM (1.20mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | G8015-G-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 40.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.128 lb(58.06 g) |
| Width | 15.30mm |
| Current Rating (Amps) | 0.350A |
| Ingress Protection | IP57-Dust Protected, Waterproof |
| Static Pressure | 0.23 in H2O(57.3 Pa) |
| Частота вращения,об./мин. | 4800 |
| Производительность,м.куб./мин. | 43 |
Детали
| Бренд | Mechatronics |
|---|
