Comair Rotron

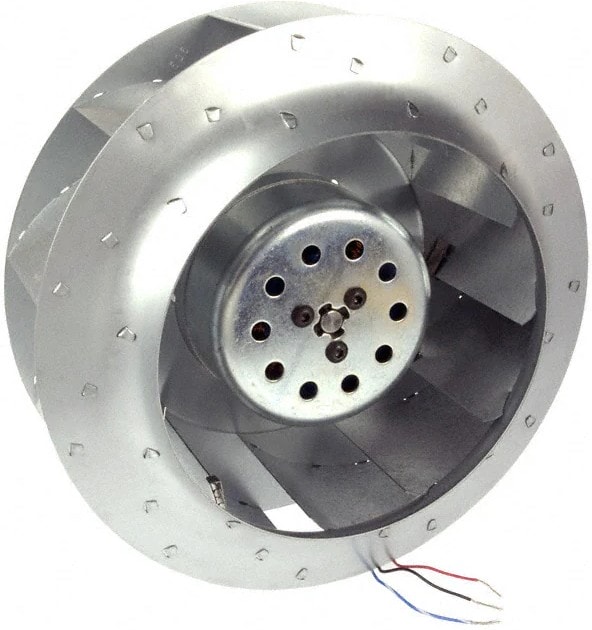

8006953544 19039871A, Fan Motorized Impellers 48VDC Round — 227mm Dia Ball 626.0 CFM (17.53m³/min) 3 Wire Leads Hirschmann
43600,00 ₽
Описание
Fan Motorized Impellers 48VDC Round — 227mm Dia Ball 626.0 CFM (17.53mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 100 |
| Fan Type | Motorized Impellers |
| Series | Diplomat-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 227×227 |
| Рабочее напряжение,В | 48 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| Features | Auto Restart, Locked Rotor Protection, Speed Senso |
| Noise | 73.5dB(A) |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp. | 48000 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Round-227mm Dia |
| Termination | 3 Wire Leads |
| Weight | 3.8 lbs(1.7 kg) |
| Width | 99.00mm |
| Current Rating (Amps) | 2.10A |
| Static Pressure | 1.9 in H2O(473.3 Pa) |
| Частота вращения,об./мин. | 2550 |
| Производительность,м.куб./мин. | 626 |
| Voltage Range | 36 ~ 60VDC |
Детали
| Бренд | Comair Rotron |
|---|
