Sanyo Denki

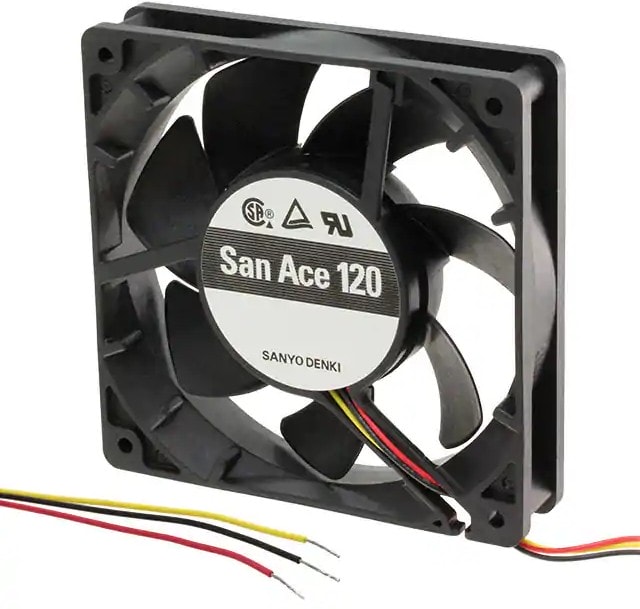

8007350722 9G1212G101, DC Fans DC Axial Fan, 120x120x38mm, 12VDC, High Performance, Tachometer Hirschmann
8370,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 119mm L x 119mm H Ball 137.0 CFM (3.84mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 11.76 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | San Ace 120-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| Product Category | DC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Speed Sensor(Tach) |
| Noise | 49.0dB(A) |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 3 Wire Leads |
| Weight | 0.728 lb(330.22 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.980A |
| Static Pressure | 0.542 in H2O(135.0 Pa) |
| Ток,А | 0.98 |
| Частота вращения,об./мин. | 3600 |
| Производительность,м.куб./мин. | 137 |
| Шум, дБA | 49 |
| Automotive | Unknown |
| Part Status | NRND |
| PPAP | Unknown |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant with Exemption |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.542inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Voltage Range | 10.2 ~ 13.8VDC |
| Size (Metric) (mm) | 119 X 119 X 38 |
| Operating Input Voltage Range (V) | 10.2 to 13.8 |
Детали
| Бренд | Sanyo Denki |
|---|
