Sanyo Denki

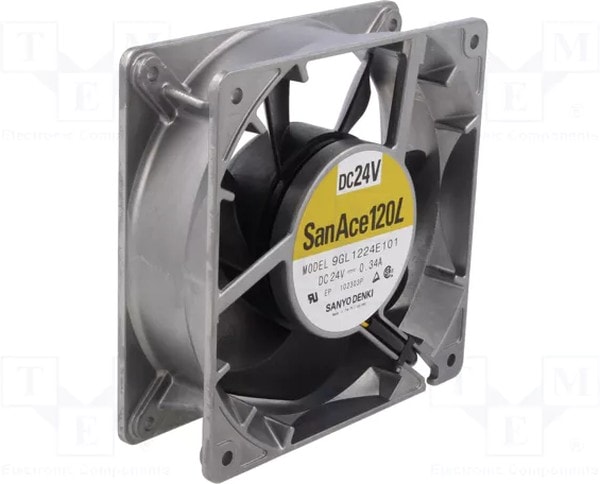

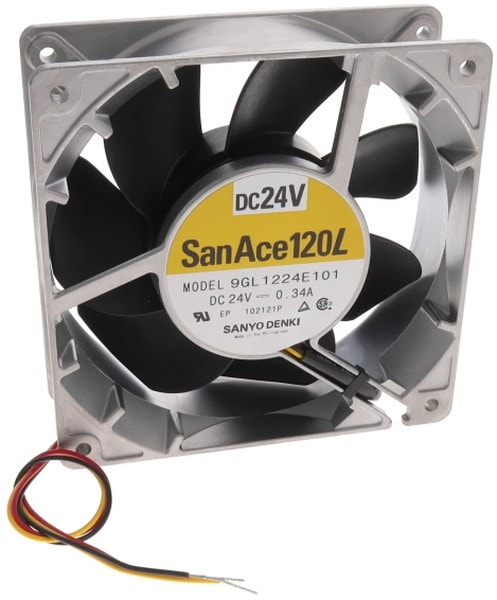

8007482076 9GL1224E101, DC Fans Axial Fan, 120x120x38mm, 24VDC, Long Life, High Performance, Ribless, Tachometer Hirschmann
7400,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 119mm L x 119mm H Ball 118.0 CFM (3.30m³/min) 3 Wire Leads
| Вес, г | 370 |
| Fan Type | Tubeaxial |
| Noise Level | 46dBA |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Features | Speed Sensor(Tach) |
| Noise | 46.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 38.00mm |
| Enclosure material | aluminium |
| Fan efficiency | 200.4m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x3 |
| Type of fan | DC |
| Power consumption | 8.16W |
| Static Pressure | 0.401 in H2O(100.0 Pa) |
| Current Rating | 0.34A |
| Cable length | 0.3m |
| Flammability rating | UL94V-1 |
| Kind of Bearing | ball |
| Rotational rate/speed | 3100rpm |
| Min. insulation resistance | 10MΩ |
| Operating voltage | 20.4…27.6V DC |
Детали
| Бренд | Sanyo Denki |
|---|
