Delta Electonics

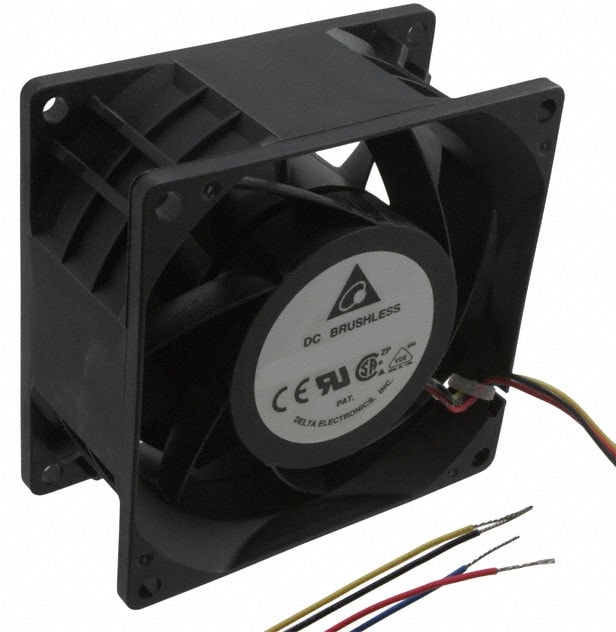

8008646563 PFB0824DHEYDG, Fan Tubeaxial 24VDC Square — 80mm L x 80mm H Ball 132.6 CFM (3.71m³/min) 4 Wire Leads Hirschmann
7410,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 80mm L x 80mm H Ball 132.6 CFM (3.71m³/min) 4 Wire Leads
| Вес, г | 200 |
| Air Flow | 132.6 CFM(3.71m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Noise | 65.0dB(A) |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Static Pressure | 2.03 in H2O(505.7 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 32.4 W |
| RPM | 9000 RPM |
| Voltage — Rated | 24VDC |
Детали
| Бренд | Delta Electonics |
|---|
