Nidec
8008638105 Вентиляторы DC F310R-05LLC Hirschmann
1150,00 ₽
Описание

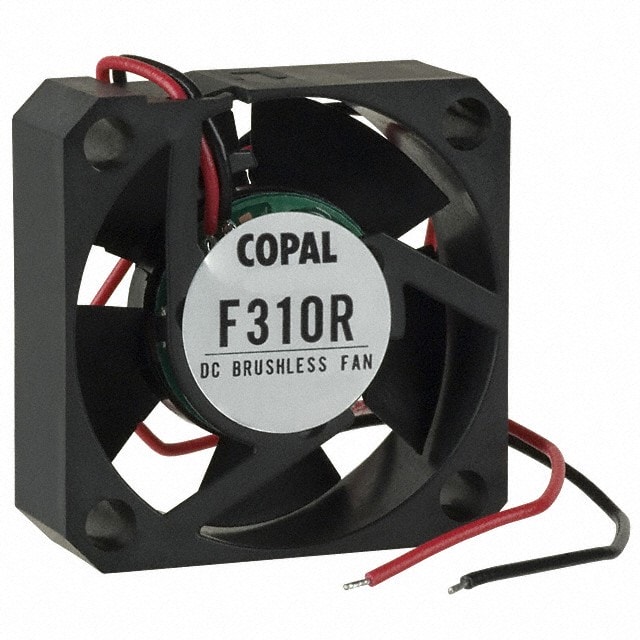

AXIAL FAN, 30MM, 5VDC, 2.118CFM, 13DBA; Supply Voltage:5V; Current Type:DC; Fan Frame Size:30mm; External Depth:10mm; Noise Rating:13dBA; Flow Rate — Imperial:2.118cu.ft/min; Flow Rate — Metric:0.06mВі/min; Bearing Type:Sleeve; Power Connection Type:2 Lead Wires; Current Rating:60mA; Product Range:F310R Series; Power Rating:-; IP Rating:-; SVHC:No SVHC (15-Jan-2018)
| Потребляемая мощность, Вт | 250 |
| Fan Type | Tubeaxial |
| Series | F310R |
| Тип подшипника | Sleeve |
| Рабочее напряжение,В | 5 |
| Manufacturer | Nidec Copal Electronics |
| Features | — |
| Noise | 13.0dB(A) |
| Lifetime @ Temp. | — |
| Material — Blade | Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate(PBT) |
| Material — Frame | Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 140В°F(-10 ~ 60В°C) |
| Size / Dimension | Square-30mm L x 30mm H |
| Termination | 2 Wire Leads |
| Weight | 0.018 lb(8.16g) |
| Width | 10.00mm |
| Ingress Protection | — |
| Static Pressure | 0.056 in H2O(13.9 Pa) |
| Current Rating | 0.050A |
| Частота вращения,об./мин. | 5500 |
| Производительность,м.куб./мин. | 2.1 |
| Шум, дБA | 13 |
| Part Status | Active |
| Voltage Range | 4.5 ~ 5.7VDC |
| Approvals | — |
Детали
| Бренд | Nidec |
|---|
