EBM-PAPST

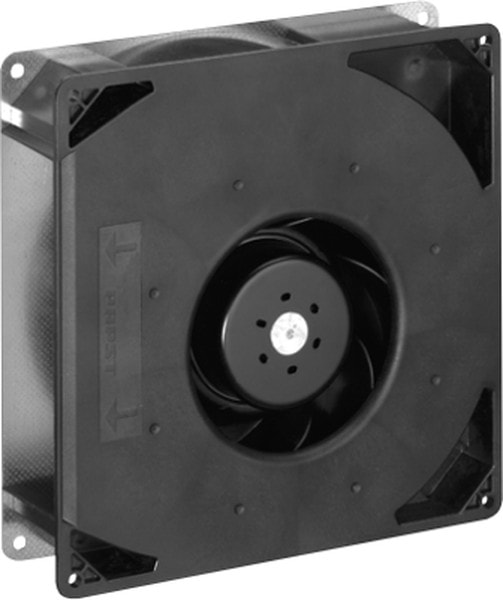

8008669727 RG160-28/14N, Fan Blower, Centrifugal 24VDC Square — 220mm L x 220mm H Ball 123.0 CFM (3.44m³/min) 2 Wire Leads Hirschmann
32350,00 ₽
Описание
Описание Вентилятор радиальный, 24В, DC, 220×220х56мм, подшипник качения, 209 куб.м/ч, 20W
| Air Flow | 209m³/h |
| Noise Level | 66dB |
| Series | RG 160 N |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 220×220 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| Width | 220mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 5000 |
| Единица измерения | шт |
| Rated voltage | 24 V |
| Sound pressure level | 66 db |
| speed | 2850 1/min |
| Type of bearing | ball bearing |
| Volume flow | 209 m³/h |
| Bearing Type | Ball |
| Blower Type | Centrifugal |
| AC or DC Operation | DC |
| Fan Speed | 2850rpm |
| Direction of Curve | Backward |
| Mounting hole diameter | 5.3mm |
| Commutation Type | Electronic |
| Horizontal Hole Spacing | 203mm |
| Mounting Hole Spacing | 203x203mm |
| Vertical Hole Spacing | 203mm |
| Direction Type | Bi-Directional |
| Family | CD214A-T7.5CA |
| Maximum Clamping Voltage | 230 V |
| Maximum Peak Pulse Current | 0,62 A |
| Maximum Reverse Leakage Current | 200 uA |
Детали
| Бренд | EBM-PAPST |
|---|
