EBM-PAPST

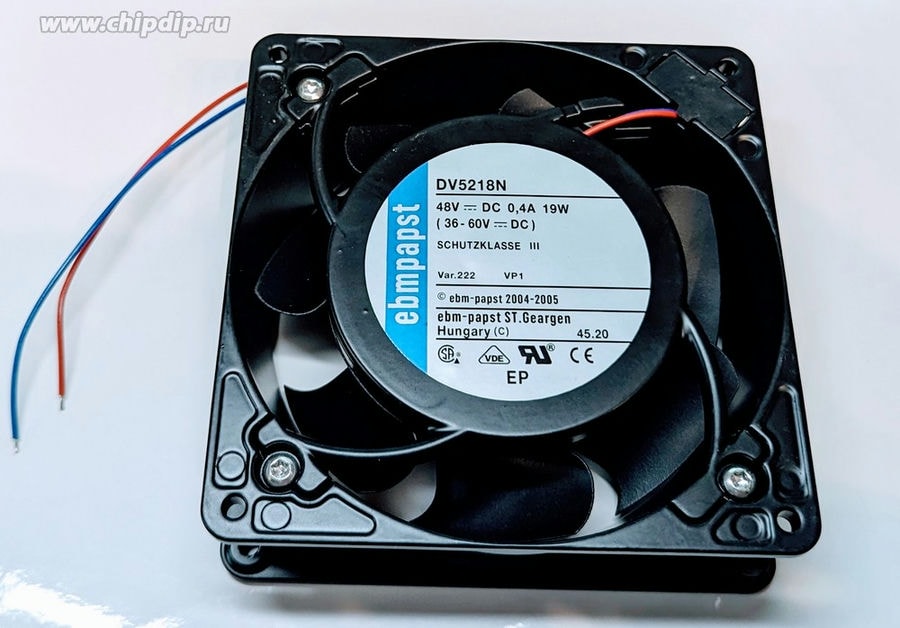

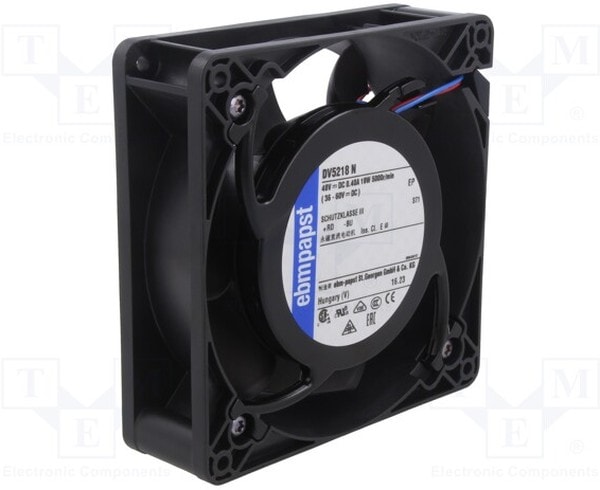

8023527481 Вентилятор Ebmpapst DV5218N DC 48V 0.4A 19W 127×38 2pin Hirschmann
18080,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 127mm L x 127mm H Ball 158.9 CFM (4.45mВі/min) 2 Wire Leads
| Вес, г | 490 |
| Потребляемая мощность, Вт | 19 |
| Fan Type | Tubeaxial |
| Noise Level | 56dBA |
| Series | DV5200-> |
| Размеры рамы,мм | 127×127 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 38 |
| Питание | 2pin |
| Manufacturer | EBM-PAPST |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| IP Rating | IP54 |
| Noise | 56.0dB(A) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 149В°F(-20 ~ 65В°C) |
| Size / Dimension | Square-127mm L x 127mm H |
| Termination | 2 Wire Leads |
| Weight | 0.915 lb(415.04 g) |
| Width | 38.00mm |
| Enclosure material | PBT |
| Fan efficiency | 270m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | DC |
| Power consumption | 18.5W |
| Fan dimensions | 127x127x38mm |
| Cable length | 0.31m |
| Voltage Range | 36 ~ 60VDC |
| Kind of Bearing | ball |
| Rotational rate/speed | 5000rpm |
| Operating voltage | 36…60V DC |
| Additional functions | PWM |
Детали
| Бренд | EBM-PAPST |
|---|
