EBM-PAPST
8026547618 DC axial fan, 12 V, 80 x 80 x 25 mm, 45 m³/h, 19 dB, sintec slide bearing, ebm-papst 8412 NGMLE Hirschmann
8510,00 ₽
Описание

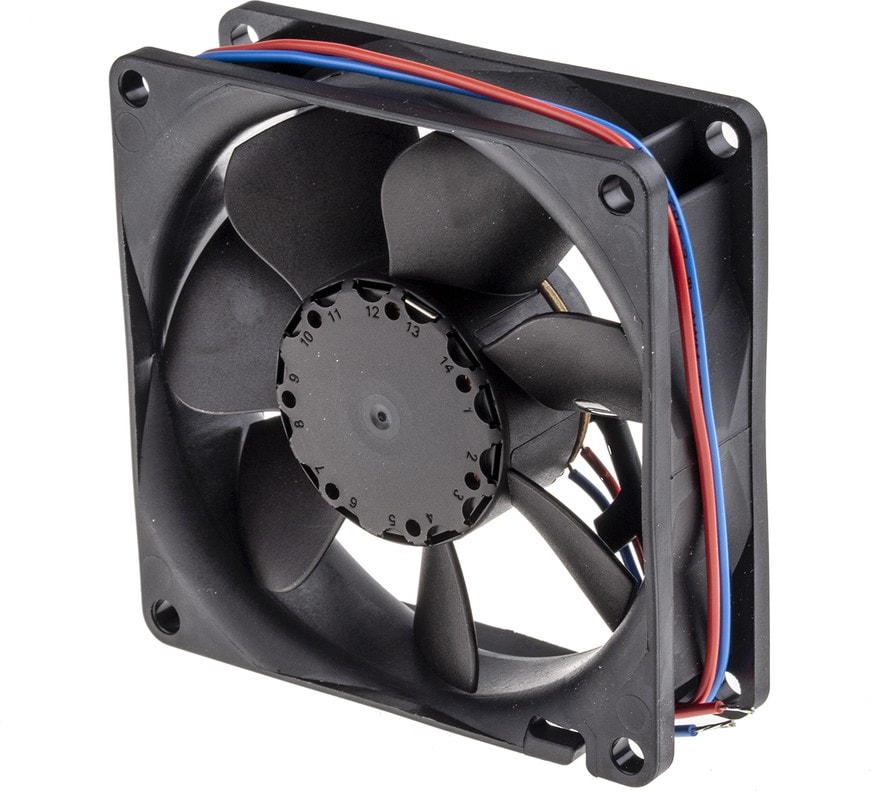

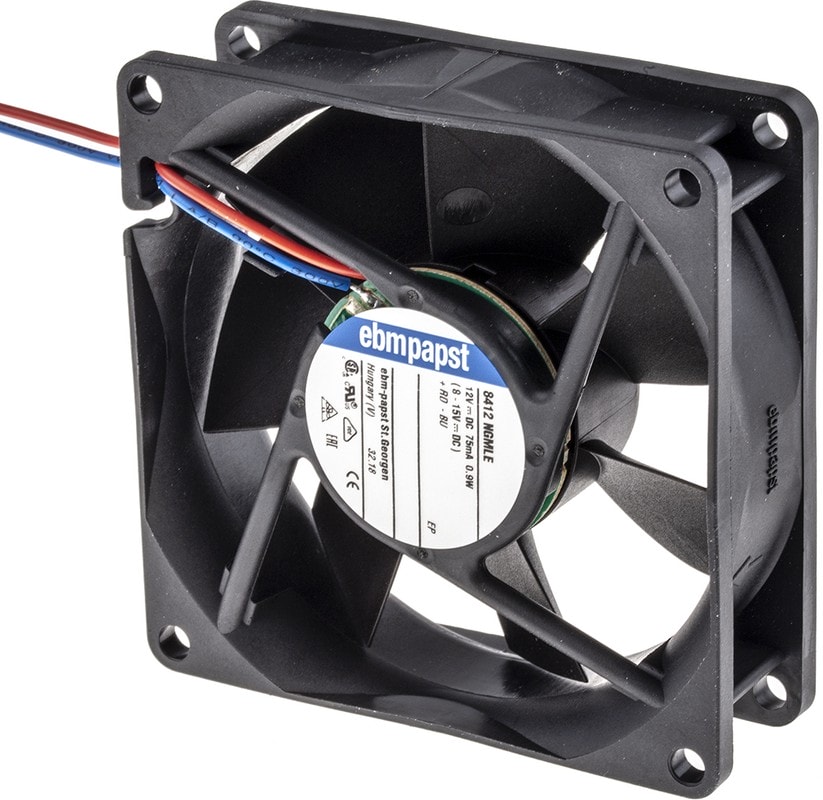

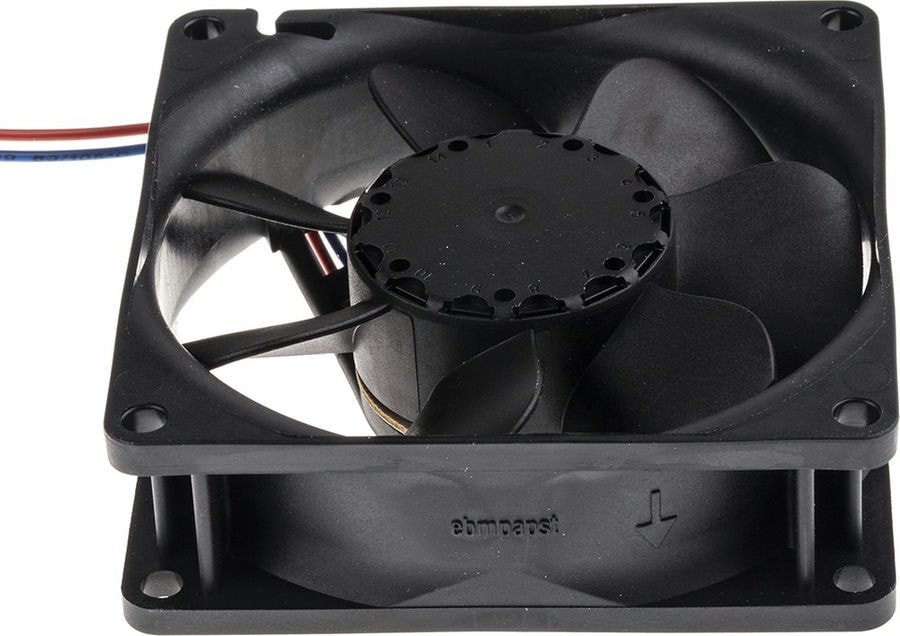

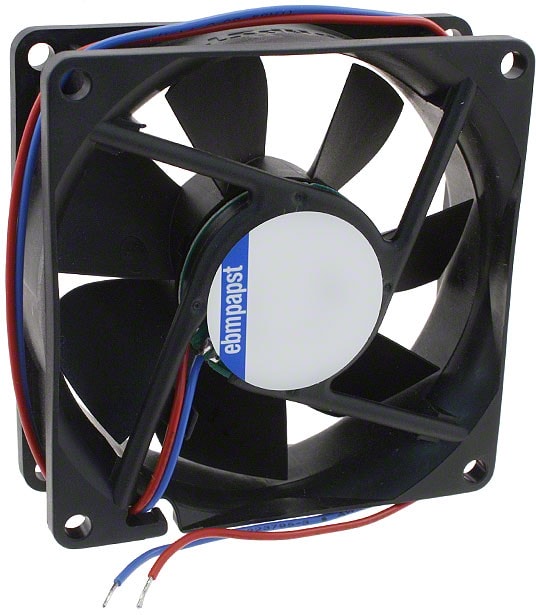

DC Axial fan, 8412 NGMLE, EBM-PAPST
The 8412 NGMLE axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Protected against reverse polarity and blocking
- Material housing: glass fiber reinforced plastic (PBT)
| Air Flow | 45m³/h |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 19dB |
| Series | 8400N |
| Supply Voltage | 12 V dc |
| Тип подшипника | Скольжения |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Brand | ebm-papst |
| Manufacturer | ebm-papst |
| Product Category | DC Fan |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Locked Rotor Sensor |
| Airflow | 26.5 CFM(0.75 m3/min) |
| Current Type | DC |
| Depth | 25 mm |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Noise | 19.0dB(A) |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 900 mW |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | -4 ~ 176°F(-20 ~ 80°C) |
| Termination | 2 Wire Leads |
| Width | 80mm |
| Housing Material | Plastic |
| Power consumption | 0.9 W |
| Rated voltage | 12 V |
| Sound pressure level | 19 db |
| speed | 2050 RPM |
| Type of bearing | sintec slide bearing |
| Version | DC axial fan |
| Volume flow | 45 m³/h |
| Bearing Type | Sleeve |
| Производительность,м.куб./мин. | 0.75 |
| Power (Watts) | 900 mW |
| RPM | 2050 RPM |
| Voltage — Rated | 12VDC |
| AC or DC Operation | DC |
| Maximum Current | 75mA |
| Fan Speed | 2050rpm |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant with Exemption |
| Maximum Operating Temperature (°C) | 80 |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Locking|Polarity |
| Shape | Square |
| Size (Metric) (mm) | 80 X 80 X 25.4 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 0.9 |
| Nominal Speed (r/min) | 2050 |
| Maximum Airflow (CFM) | 26.5 |
| Noise Level (dB) | 19 |
| Bearings | Sintec-Sleeve |
| Operating Input Voltage Range (V) | 8 to 15 |
Детали
| Бренд | EBM-PAPST |
|---|
