8026549546 DC axial fan, 12 V, 80 x 80 x 25 mm, 33 m³/h, 12 dB, slide bearing, ebm-papst 8412 NGLE Hirschmann
8510,00 ₽
Описание

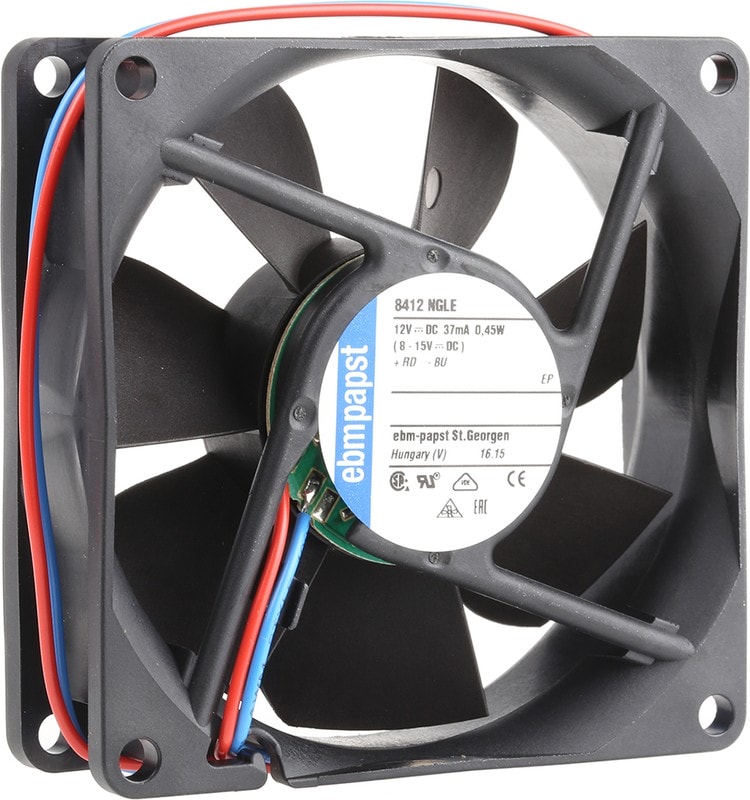

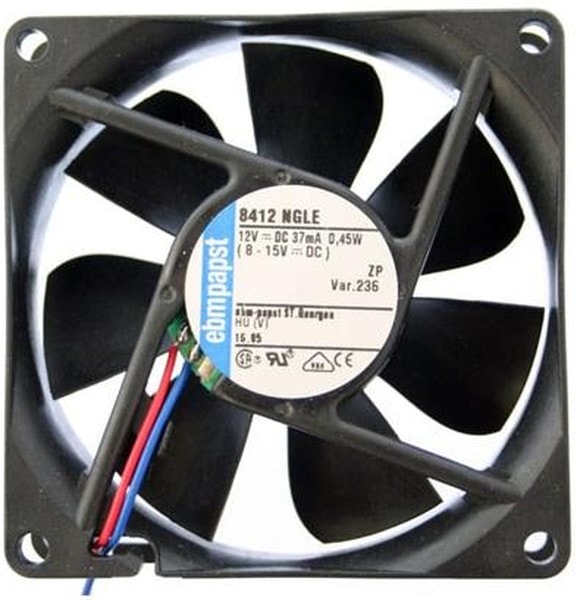

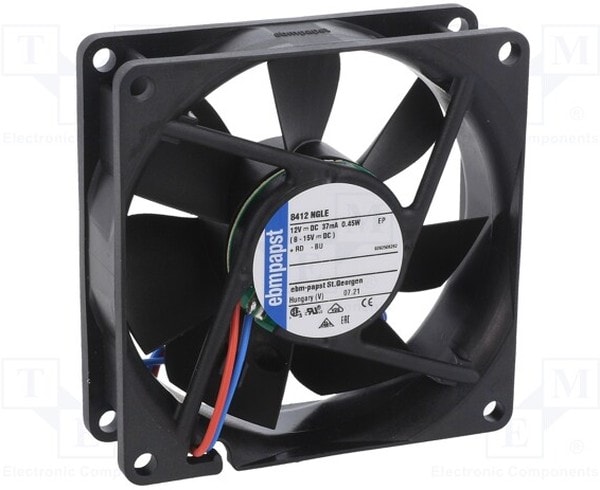

DC Axial fan, 8412 NGLE, EBM-PAPST
The 8412 NGLE axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Protected against reverse polarity and blocking
- Electronic commutation completely integrated
| Air Flow | 33m³/h |
| Mounting | Flange Mount |
| Noise Level | 12dB |
| Series | 8400N |
| Special Features | None |
| Supply Voltage | 12 V dc |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Brand | ebm-papst |
| Manufacturer | EBM-PAPST |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Locked Rotor Sensor |
| Airflow | 19.4 CFM(0.55 m3/min) |
| Current Type | DC |
| Depth | 25 mm |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Noise | 12 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 0.5 W |
| Termination Style | Wire Leads-2 |
| Type | Tubeaxial |
| Operating Temperature | -20 to 85 °C |
| Termination | Lead Wires |
| Width | 80mm |
| Enclosure material | plastic |
| Fan efficiency | 33m3/h |
| Impeller material | PA plastic |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | DC |
| Category | DC Fan |
| Housing Material | Plastic |
| Maximum Airflow | 19.4 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Power consumption | 0.45 W |
| Rated voltage | 12 V |
| Sound pressure level | 12 db |
| speed | 1500 RPM |
| Type of bearing | slide bearing |
| Version | DC axial fan |
| Volume flow | 33 m³/h |
| Bearing Type | Sleeve |
| Part # Aliases | 8412NGL |
| AC or DC Operation | DC |
| Fan dimensions | 80x80x25mm |
| Fan Speed | 1500rpm |
| Cable length | 0.31m |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Locking|Polarity |
| Shape | Square |
| Size (Metric) (mm) | 80 X 80 X 25.4 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 0.5 |
| Nominal Speed (r/min) | 1500 |
| Maximum Airflow (CFM) | 19.4 |
| Noise Level (dB) | 12 |
| Bearings | Sintec-Sleeve |
| Kind of Bearing | slide bearing |
| Rotational rate/speed | 1500rpm |
| Operating Input Voltage Range (V) | 8 to 15 |
| Operating voltage | 8…15V DC |
Детали
| Бренд | EBM-PAPST |
|---|
