EBM-PAPST
8030963435 DC axial fan, 24 V, 60 x 60 x 32 mm, 5.09 m³/h, 43 dB, ball bearing, ebm-papst 614 J/2 HHPR-010 Hirschmann
17450,00 ₽
Описание

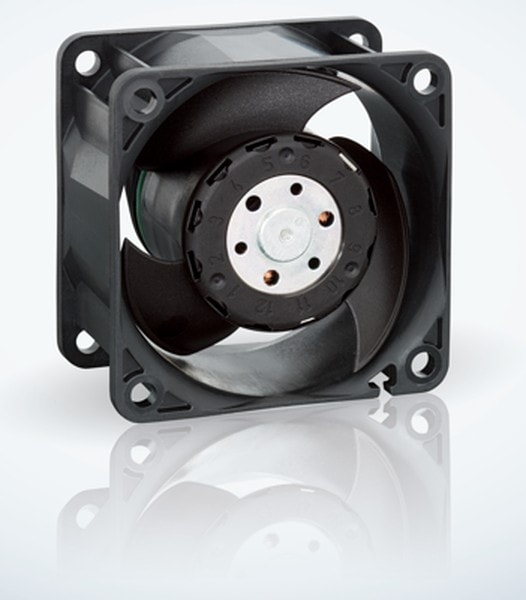

DC Axial fan, 614 J/2 HHPR-010, EBM-PAPST
The 614 J/2 HHPR-010 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Insulation diameter 1,45 mm
- Material housing: plastic
| Noise Level | 62 dB |
| Special Features | N/A |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 32 |
| Питание | 4pin |
| ECCN | EAR99 |
| Power Rating | 14.2 W |
| Operating Temperature | -40 to 78 °C |
| Termination | Lead Wire |
| Category | DC Fan |
| COO | HU |
| Housing Material | Plastic |
| Maximum Airflow | 48.85 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Power consumption | 6 W |
| Rated voltage | 24 V |
| Sound pressure level | 43 db |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 5.09 m³/h |
| Производительность,м.куб./мин. | 83 |
Детали
| Бренд | EBM-PAPST |
|---|
