Sanyo Denki
8033974174 9RFA1324P3H001, Fan Tubeaxial 24VDC Round — 136mm Dia Ball 59.4 CFM (1.66m³/min) 4 Wire Leads Hirschmann
17040,00 ₽
Описание

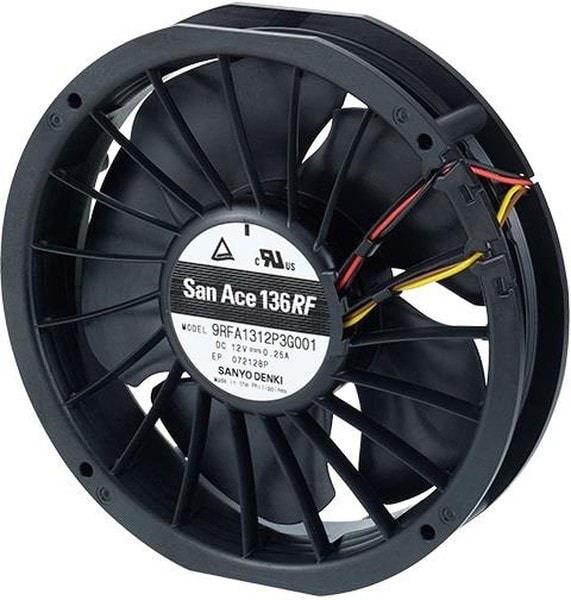

San Ace 136RF 9RFA Reversible Flow Fans
Sanyo Denki San Ace 136RF 9RFA Reversible Flow Fans are 136mm x 28mm fans with 2.10m 3 /min. maximum airflow and 285Pa maximum static pressure. The maximum static pressure is increased by approximately 2.8 times compared to previous Sanyo Denki models. Sanyo Denki San Ace 136RF 9RFA Reversible Flow Fans offer the same level of blowing performance in either direction, making the series ideal for home ventilation systems and other applications that require two-way blowing fans. The speed and blowing direction of these fans can be freely controlled by a PWM signal and can replace multiple conventional fans with a single unit.
| Series | 9RFA Type |
| Размеры рамы,мм | 136×136 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM |
| Airflow | 59.2 CFM(1.68 m3/min) |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 20 |
| Noise | 44 dBA, 47 dBA |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 1.92 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Housing Material | Plastic |
| speed | 4350 RPM |
| Bearing Type | Ball |
| Pressure Type | 0.74 in H2O, 0.72 in H2O |
| Tradename | San Ace 136RF |
| Life | 70000 Hours |
| Lead Length | 300 mm |
| Size | 136 mm x 28 mm |
Детали
| Бренд | Sanyo Denki |
|---|
