Sanyo Denki

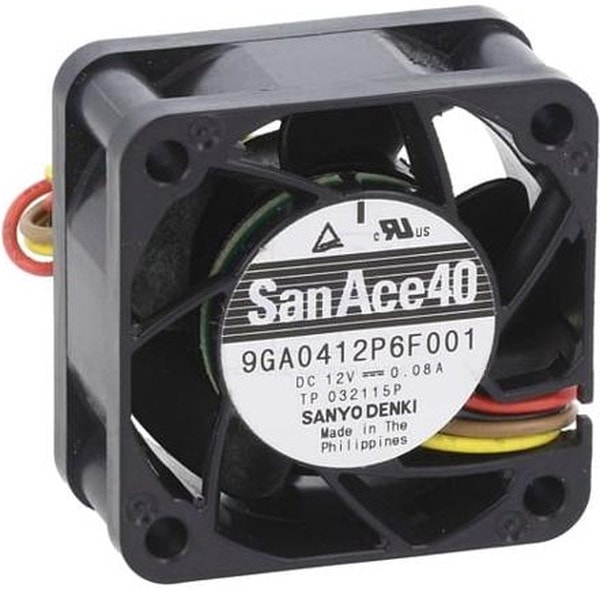

8045781896 Вентилятор Sanyo Denki San Ace 40 9GA0412P6F001 12V 0.08A 40×20 4pin Hirschmann
3650,00 ₽
Описание
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
| Вес, г | 35 |
| Потребляемая мощность, Вт | 960 |
| Air Flow | 12.6m³/h |
| Fan Type | Tubeaxial |
| Series | San Ace 40 |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Manufacturer | Sanyo Denki America Inc. |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Lifetime @ Temp. | 60000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 4 Wire Leads |
| Weight | 0.077 lb(34.93g) |
| Width | 40mm |
| Current Rating (Amps) | 0.080A |
| Ingress Protection | — |
| Static Pressure | 0.319 in H2O(79.5 Pa) |
| Ток,А | 80 |
| Частота вращения,об./мин. | 8000 |
| Производительность,м.куб./мин. | 0.21 |
| Шум, дБA | 28 |
| AC or DC Operation | DC |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Part Status | Active |
| Voltage Range | 10.2 ~ 13.8VDC |
| Approvals | CSA, TUV, UL |
Детали
| Бренд | Sanyo Denki |
|---|
