NMB Technologies

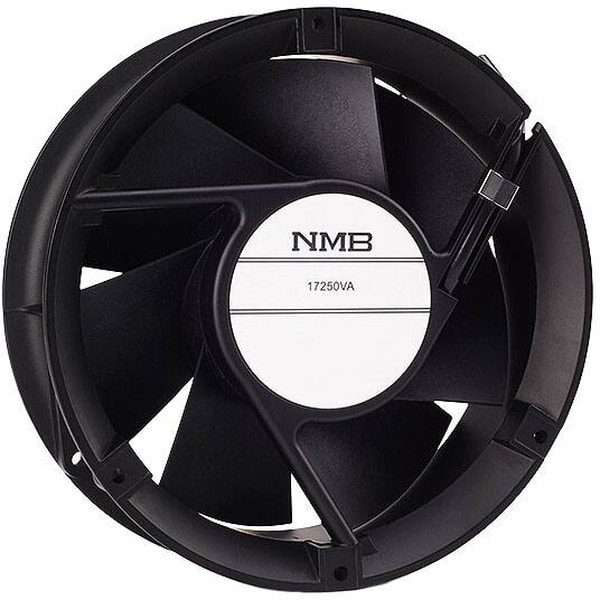

8005950734 17250VA-48R-GA-00, Fan Tubeaxial 48VDC Round — 172.7mm Dia Ball 346.1 CFM (9.69m³/min) 2 Wire Leads Hirschmann
16170,00 ₽
Описание
Fan Tubeaxial 48VDC Round — 172.7mm Dia Ball 346.1 CFM (9.69mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 43.2 |
| Fan Type | Tubeaxial |
| Series | 17250VA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172.7 |
| Рабочее напряжение,В | 48 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Noise | 62.0dB |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Round-172.7mm Dia |
| Termination | 2 Wire Leads |
| Weight | 2.1 lbs(952.5 g) |
| Width | 50.80mm |
| Current Rating (Amps) | 0.900A |
| Ingress Protection | IP69K-Dust Tight, High Temp Water Jets, Waterpro |
| Static Pressure | 1.25 in H2O(312.0 Pa) |
| Частота вращения,об./мин. | 4600 |
| Производительность,м.куб./мин. | 346.1 |
| Video File | NMB IP69K-Rated Cooling Fans | Digi-Key Daily |
| Voltage Range | 38 ~ 52.8VDC |
Детали
| Бренд | NMB Technologies |
|---|
