Comair Rotron

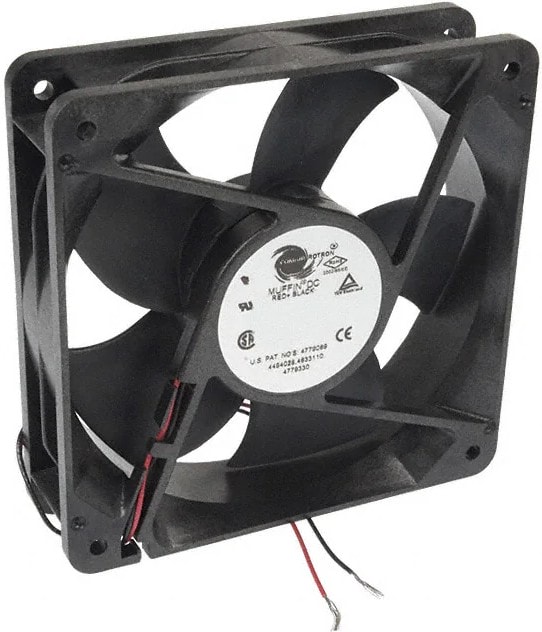

8005788781 19032489A, Fan Tubeaxial 12VDC Square — 120mm L x 120mm H Ball 102.0 CFM (2.86m³/min) 2 Wire Leads Hirschmann
8290,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 120mm L x 120mm H Ball 102.0 CFM (2.86mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 7.9 |
| Fan Type | Tubeaxial |
| Series | Muffin-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 47.8dB(A) |
| Approval Agency | CE, UL |
| Lifetime @ Temp. | 78000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Polycarbonate(PC), Fiberglass Reinforced |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Weight | 0.529 lb(239.95 g) |
| Width | 32.00mm |
| Current Rating (Amps) | 0.660A |
| Static Pressure | 0.35 in H2O(87.2 Pa) |
| Частота вращения,об./мин. | 3700 |
| Производительность,м.куб./мин. | 102 |
| Voltage Range | 6 ~ 14VDC |
Детали
| Бренд | Comair Rotron |
|---|
