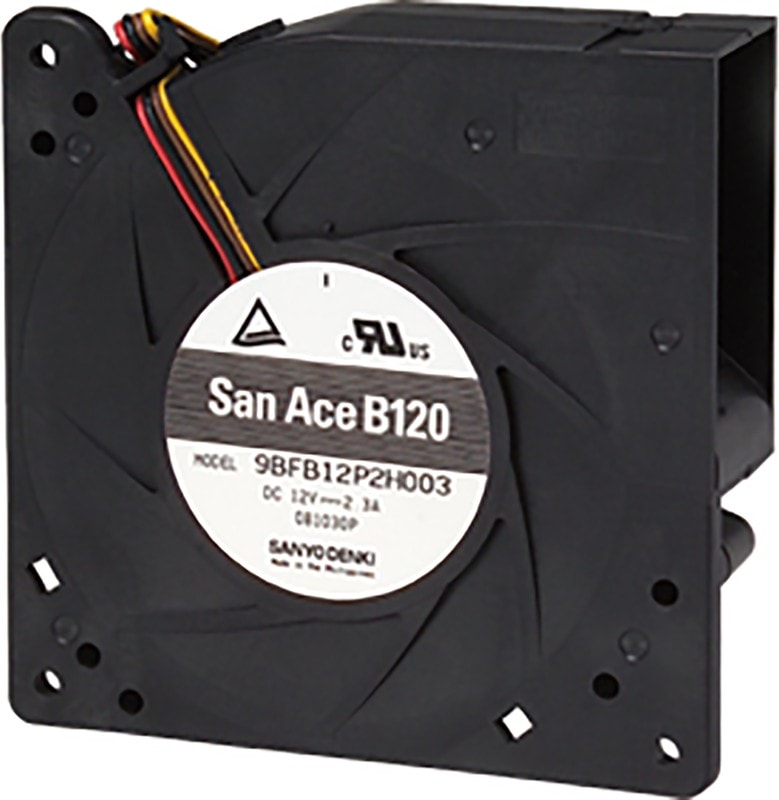

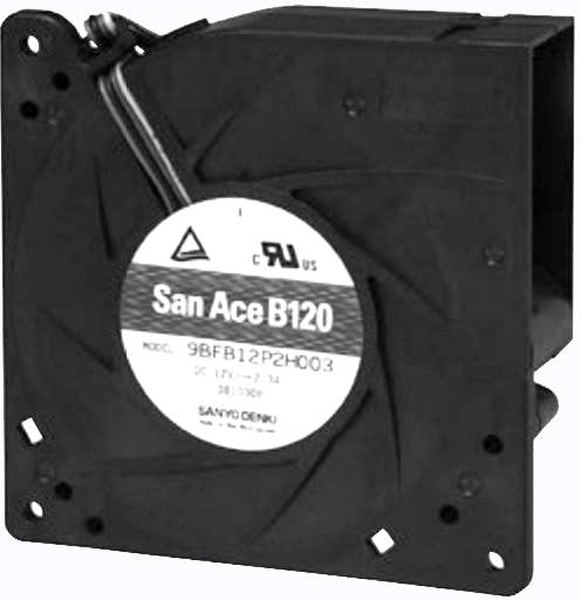

8008679389 9BFB24P2H003, Fan Blower 24VDC Square/Rounded — 120mm L x 120mm H Ball 56.5 CFM (1.58m³/min) 4 Wire Leads Hirschmann
11870,00 ₽
Описание
With high static pressure, Blowers are suitable for cooling equipment with high system impedance and high heat generation such as servers, storage systems, and base stations.
| Air Flow | 56.5cfm |
| Noise Level | 62dB(A) |
| Series | San Ace B120 |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | Blowers & Centrifugal Fans |
| Product Type | Blowers |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM |
| Airflow | 16.2 CFM(0.46 m3/min) |
| Current Type | DC |
| Depth | 120 mm |
| Factory Pack Quantity: Factory Pack Quantity | 20 |
| Noise | 62 DBA |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 2.88 W |
| Termination Style | Wire Leads |
| Width | 120mm |
| Housing Material | Plastic |
| speed | 1300 RPM |
| Static Pressure | 1250Pa |
| Bearing Type | Ball |
| Part # Aliases | 3568825 19T8930 |
| Pressure Type | 5.02 in H2O |
| Blower Type | Blower |
| Tradename | San Ace B120 |
| AC or DC Operation | DC |
| Maximum Current | 1.1A |
| Fan Speed | 3750rpm |
| Direction of Curve | Backward |
| Mounting hole diameter | 4.3mm |
| Horizontal Hole Spacing | 105mm |
| Mounting Hole Spacing | 105x105mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 105mm |
| Termination Type | Lead Wire |
| Compliance | CSA; TUV; UL |
| Inlet Diameter | 77mm |
Детали
| Бренд | Sanyo Denki |
|---|
